The LtAP mini 4G kit (RB912R-2nD-LTm&R11e-4G) is a small weatherproof wireless access point with a built-in cellular modem that supports 4G (LTE) connectivity on LTE FDD bands 3 (1800MHz), 7 (2600MHz), 20 (800MHz) and 31 (450MHz), as well as LTE TDD bands 41n (2500MHz), 42 (3500MHz) and 43 (3700MHz).

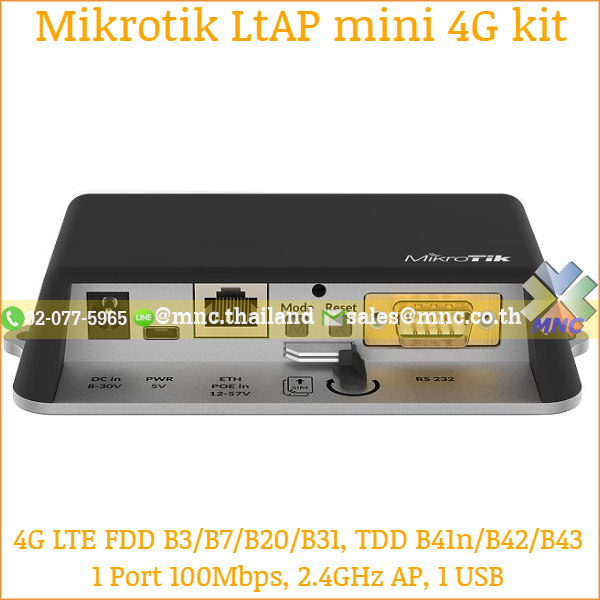

Connect to the LtAP mini’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The LtAP mini 4G kit also has one 10/100 Ethernet LAN port for your wired devices. The RS232 serial port gives you console access for debugging.

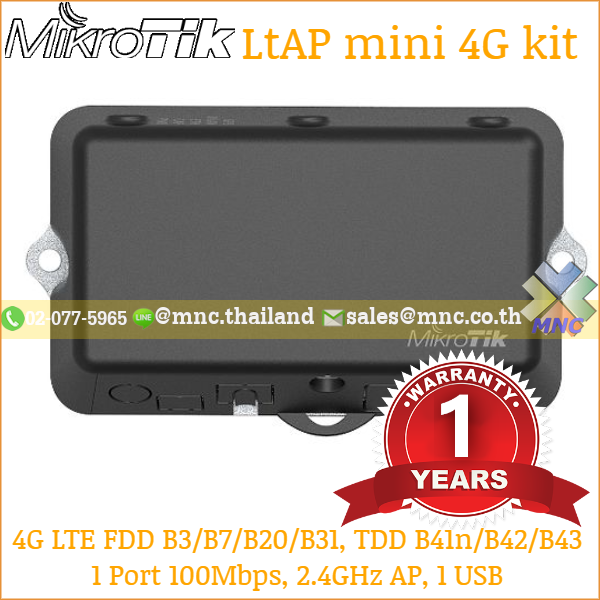

LtAP mini 4G kit has a special enclosure with a wall mounting kit, two SIM slots to alternate between cellular providers, and integrated GPS support, making this a perfect device for use in moving vehicles like cars, buses, or trains. To use GPS an external GPS antenna is required, order separately (product code GPSANT).

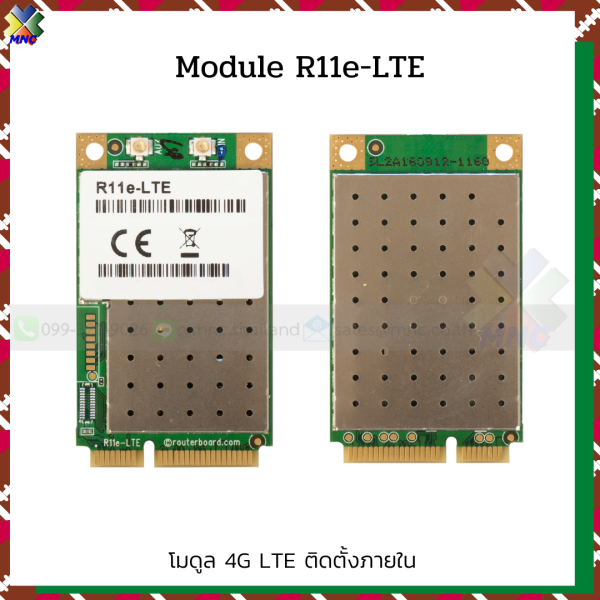

The LTE card is connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for better coverage. The unit has several powering options: 9-30 V PoE-in by Ethernet port, DC jack, and micro-USB.
Use the built-in GPS module to track the location of your vehicle in real time, we have even provided a simple tracking application example in the RouterOS documentation, to help you start the development of your platform.
